Description
Product Introduction
This ESP32-C6 multi-sensor is an indoor environmental sensing platform for Home Assistant, ESPHome-style dashboards, Zigbee2MQTT-related experiments and connected air quality projects. It brings several common home-environment sensors into one compact USB-C powered device.
Key Features
- ESP32-C6 wireless platform with Wi-Fi, Zigbee and Bluetooth capability
- USB-C 5V power input
- Optional lithium battery power support with charging circuit design
- Approximate enclosure format: 90 x 90 x 40 mm
- Designed for home automation, indoor comfort monitoring and prototype dashboards
Sensor Set
- AGS10 VOC sensor for volatile organic compound detection
- SCD40 CO2 sensor for carbon dioxide monitoring
- AHT20 temperature and humidity sensor for comfort data
- BH1750 ambient light sensor for lighting automation
- BMP280 barometric pressure sensor for atmosphere and weather-related data
- QMI8658C six-axis IMU for orientation and motion experiments
- Optional 5.8 GHz radar presence sensor support depending on configuration
Integration Note
Firmware and platform setup may be required depending on your target workflow. Contact Maker Go before bulk orders if you need a specific firmware image, Zigbee profile or Home Assistant integration path.

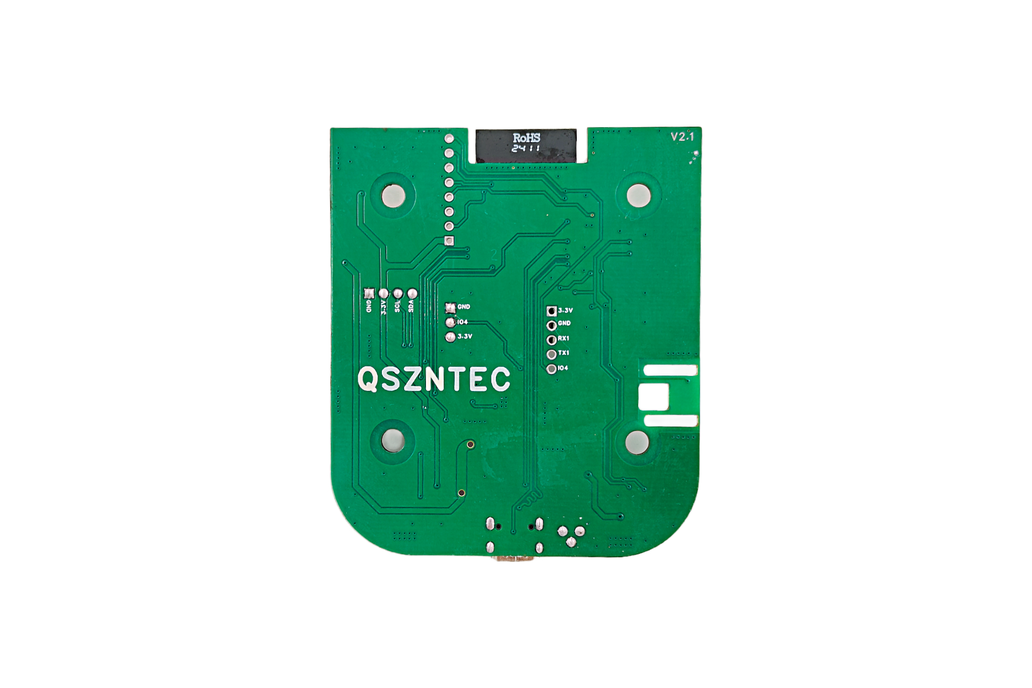

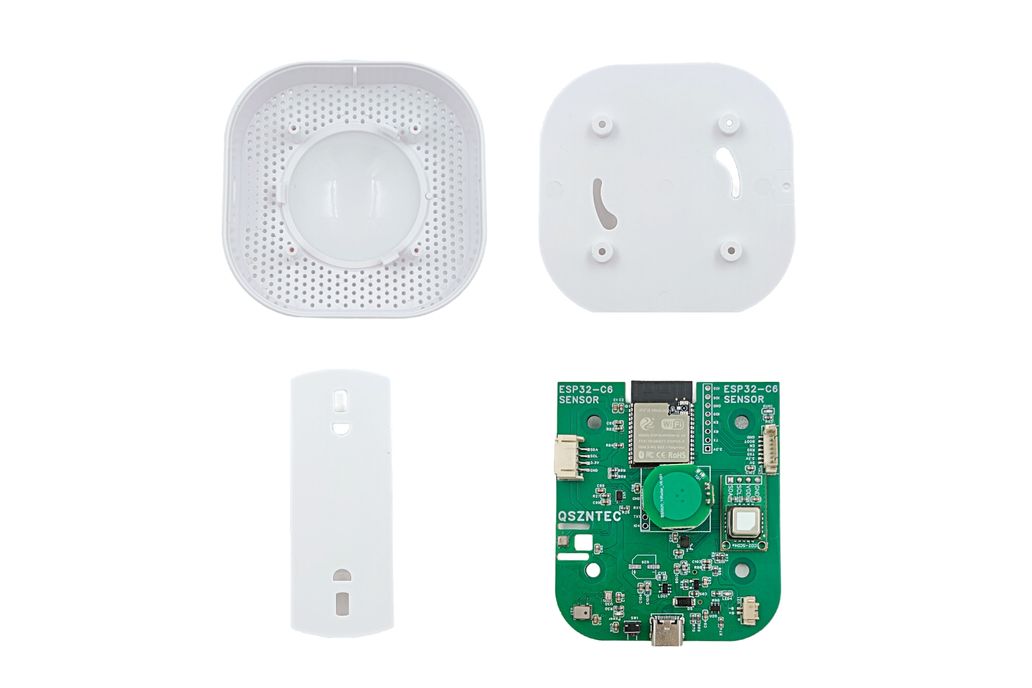

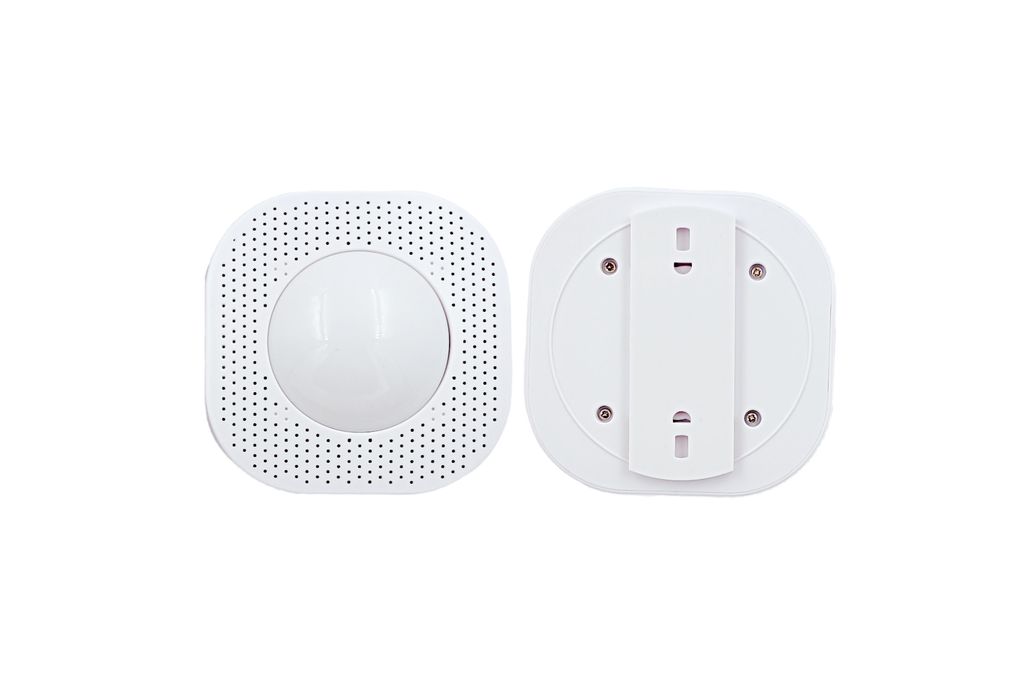

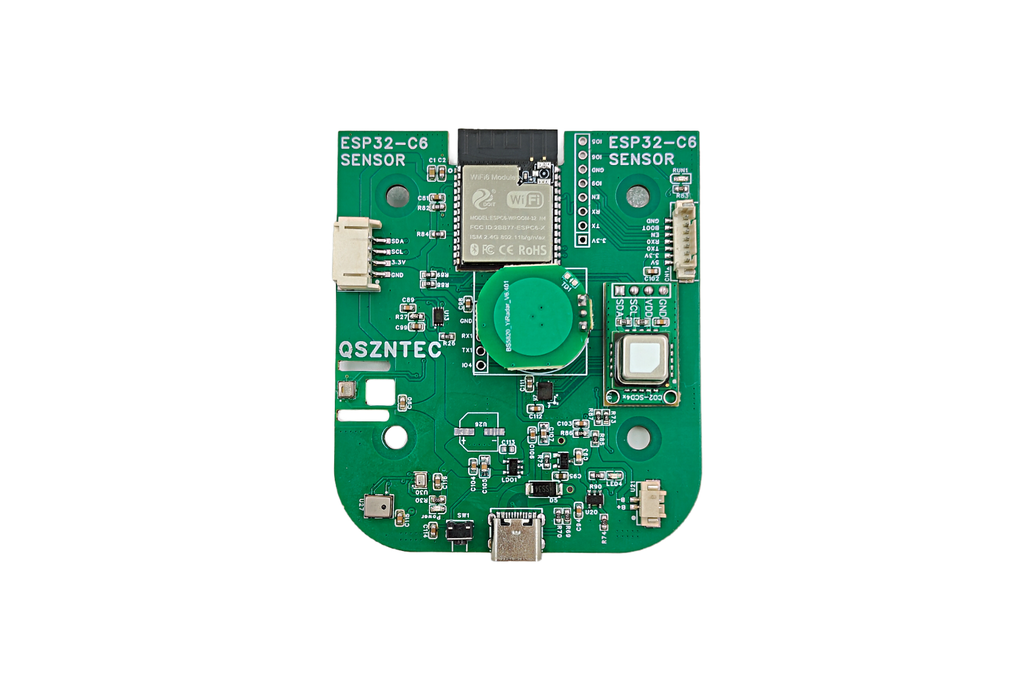

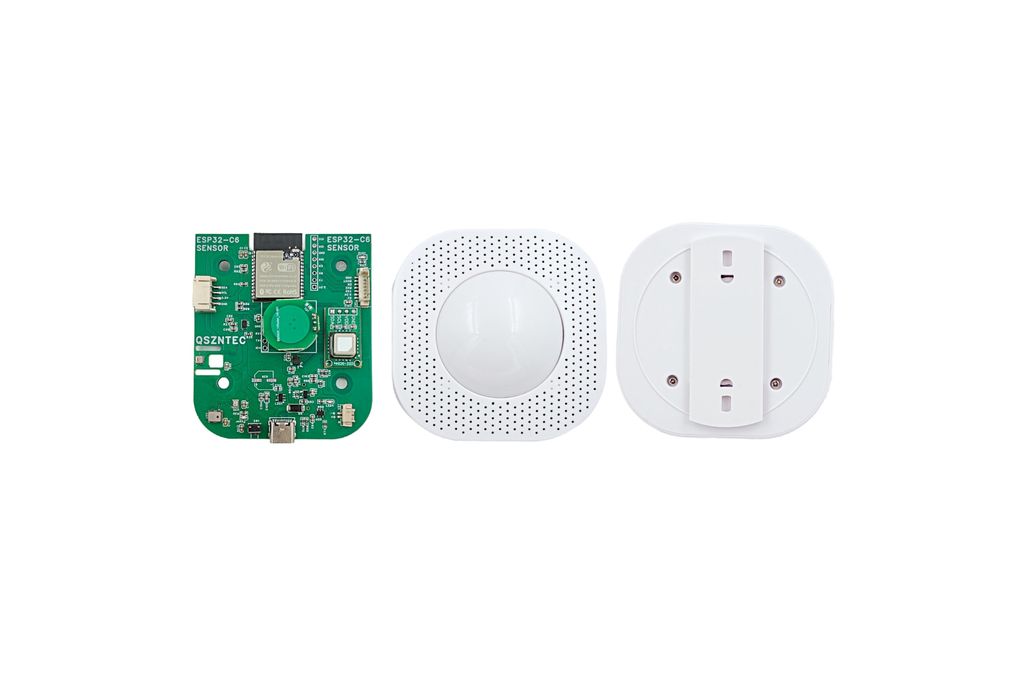

Product Images
