Description
Product Introduction
The ESP32-C5-EVB-Plus is based on the ESP32-C5-N4 module, using a 32-bit RISC-V single-core microprocessor up to 240 MHz. It is designed for smart home control, Tasmota-style relay automation, Matter-related experiments and ESP32-C5 connectivity development.
Core Hardware
- ESP32-C5-N4 module with 4 MB flash
- 320 KB ROM, 384 KB HP SRAM and 16 KB LP SRAM
- 2.4 GHz and 5 GHz dual-band Wi-Fi 6, 1T1R
- Bluetooth 5 LE support
- IEEE 802.15.4 radio for Zigbee and Thread development
Automation Features
- Four relays rated for AC switching projects
- Four opto-isolated inputs for external signal detection
- USB-C for power, programming and JTAG debugging
- Optional external DC power input for embedded installations
- Two UEXT connectors, expanded GPIO connector and reset button
- Mounting holes and rubber-pad friendly mechanical layout
Wireless Protocol Notes
- Compatible with IEEE 802.15.4-2015
- 2.4 GHz OQPSK PHY with 250 Kbps data rate
- Designed for Thread 1.4 and Zigbee 3.0 related development
- Supports external flash and PSRAM expansion options
- Up to 29 GPIO with rich peripheral support
Recommended Use
Use this board for smart relay controllers, Tasmota projects, Matter/Thread experiments, Zigbee prototypes, industrial-style input monitoring and low-volume OEM control products.

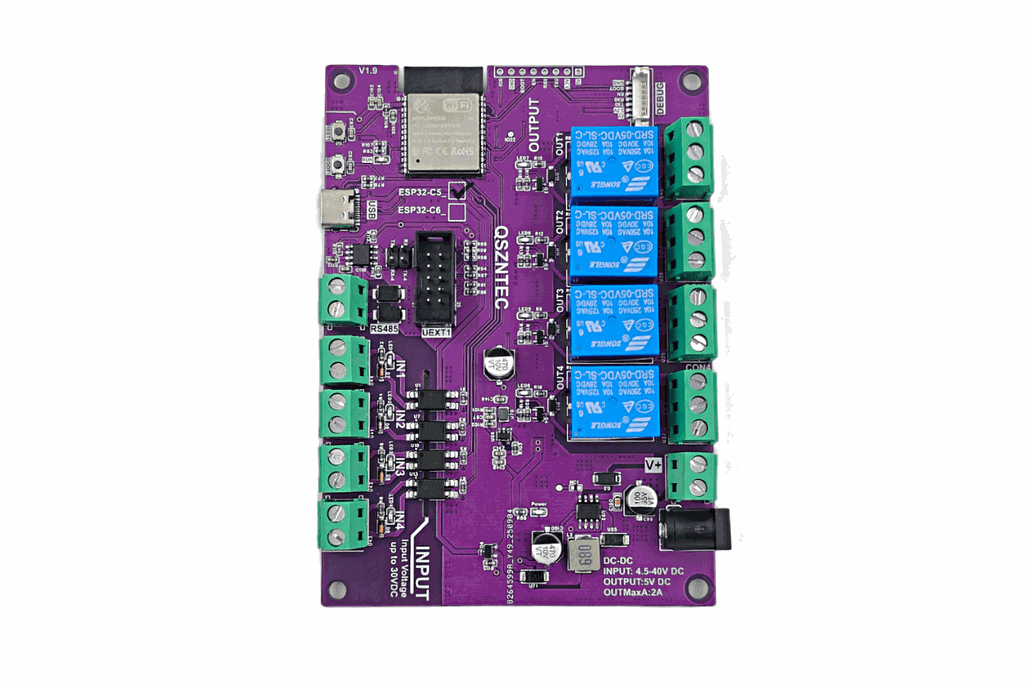

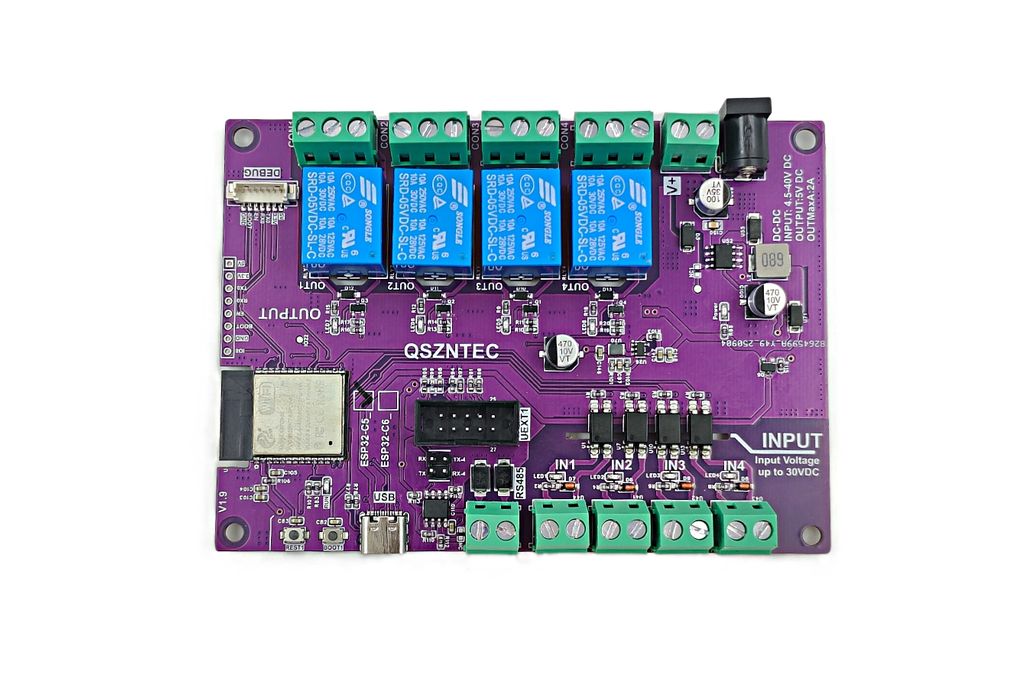

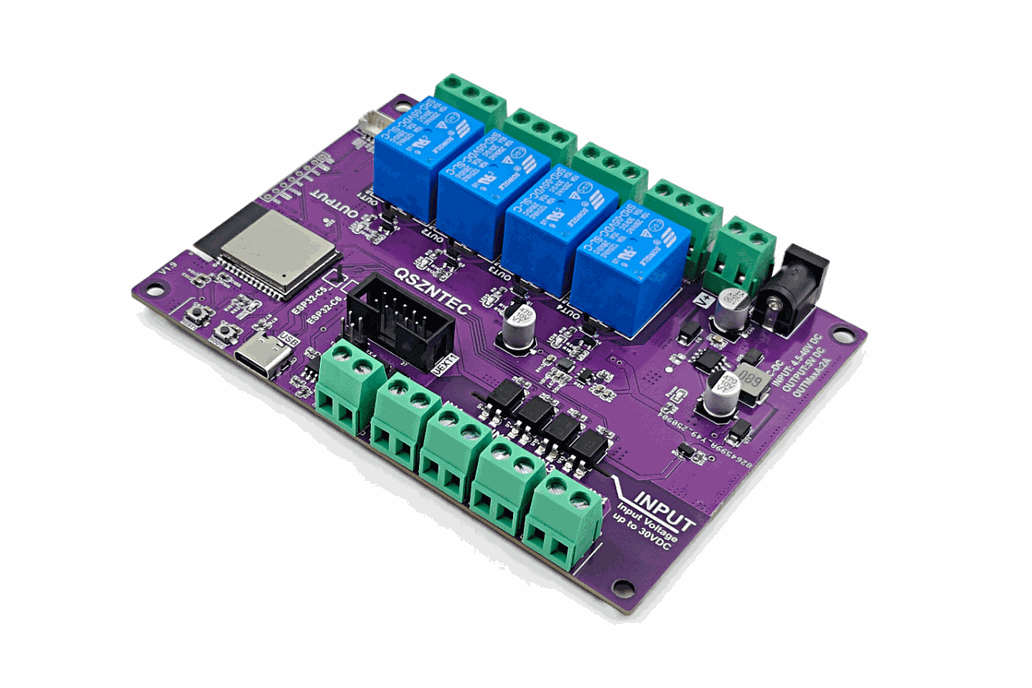

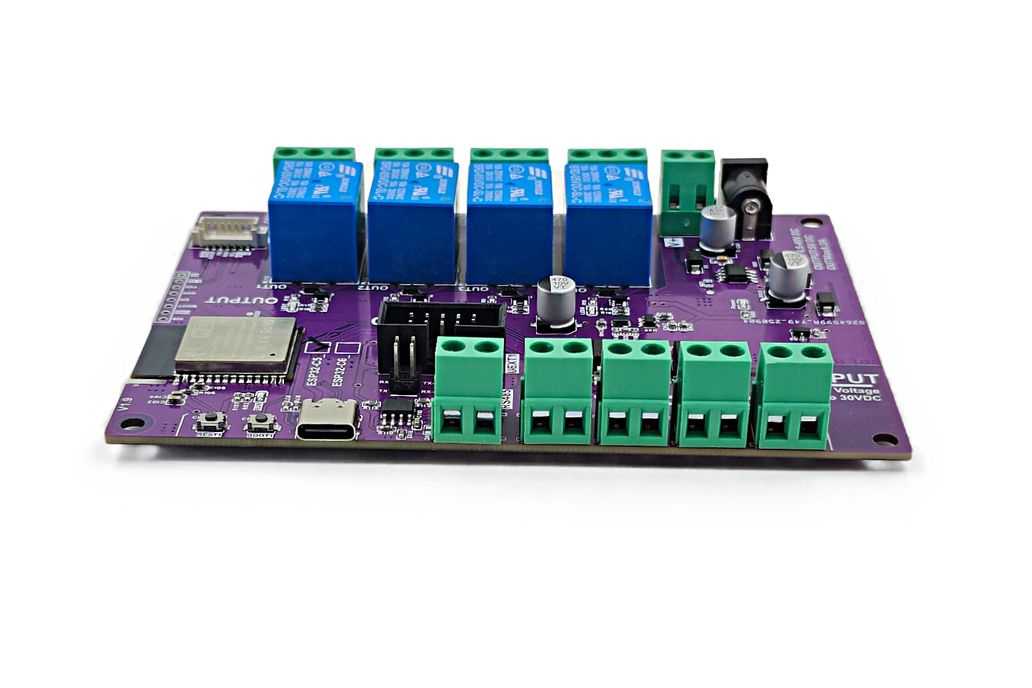

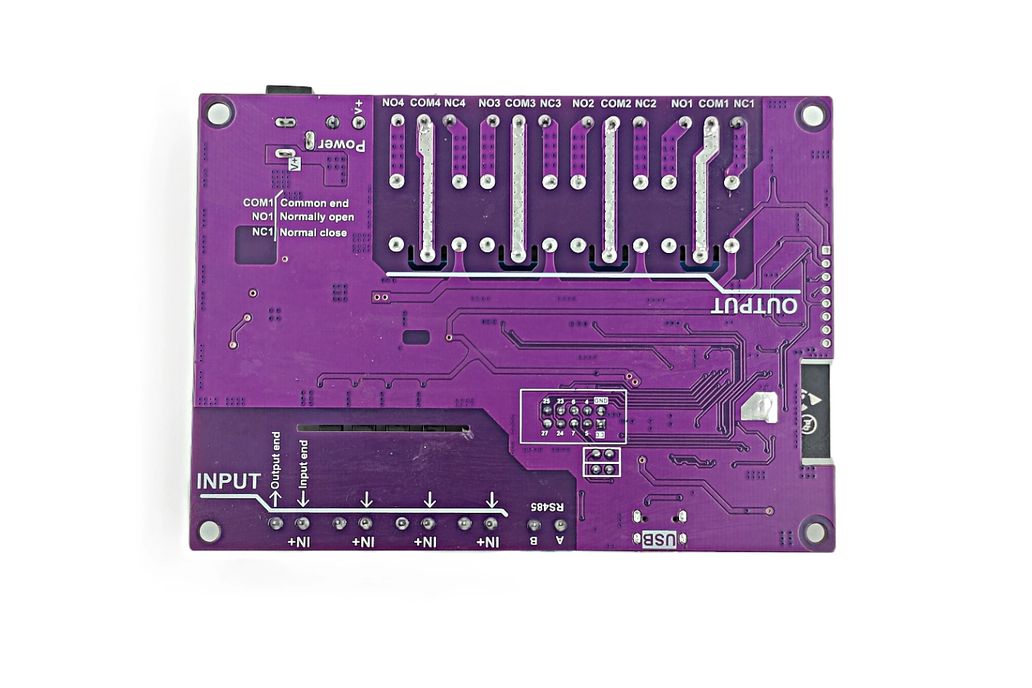

Product Images
