Description
Product Introduction
The ESP32-C6-EVB is a Wi-Fi 6 smart home development board based on the ESP32-C6-WROOM-1-N4 module. It combines 2.4 GHz Wi-Fi 6, Bluetooth 5 LE, and IEEE 802.15.4 connectivity for Matter, Zigbee, Thread, and related IoT applications.
The board is designed for Tasmota-based relay control, automation testing, gateway prototyping, and compact smart home hardware projects.
Features
- ESP32-C6-WROOM-1-N4 module with a 32-bit RISC-V single-core processor up to 160 MHz.
- 4 MB flash, 320 KB ROM, 512 KB HP SRAM, and 16 KB LP SRAM.
- 2.4 GHz Wi-Fi 6, Bluetooth 5 LE, and IEEE 802.15.4 support for Matter, Zigbee, and Thread projects.
- USB-C connector for power, programming, and JTAG debugging.
- External power jack supporting 8-50 V DC input.
- Four 10A / 240VAC relays for switching external loads.
- Four opto-isolated DC inputs up to 30 V DC.

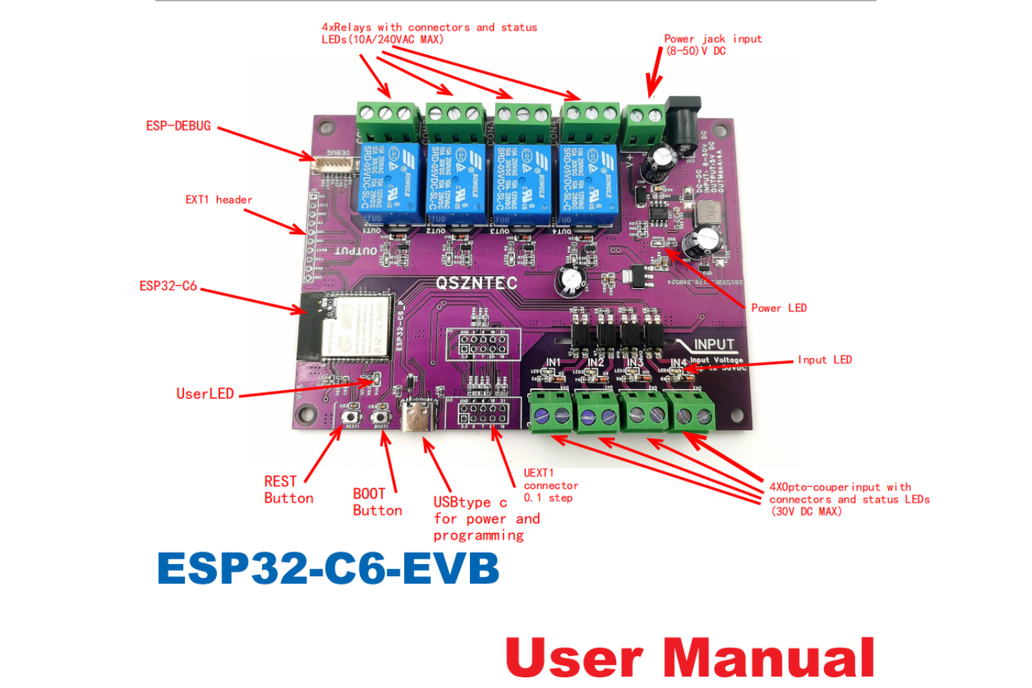

- Two UEXT connectors, extension GPIO header, reset button, user button, ESP-PROG compatible programming connector, four mounting holes, and rubber pads included.
Product Size

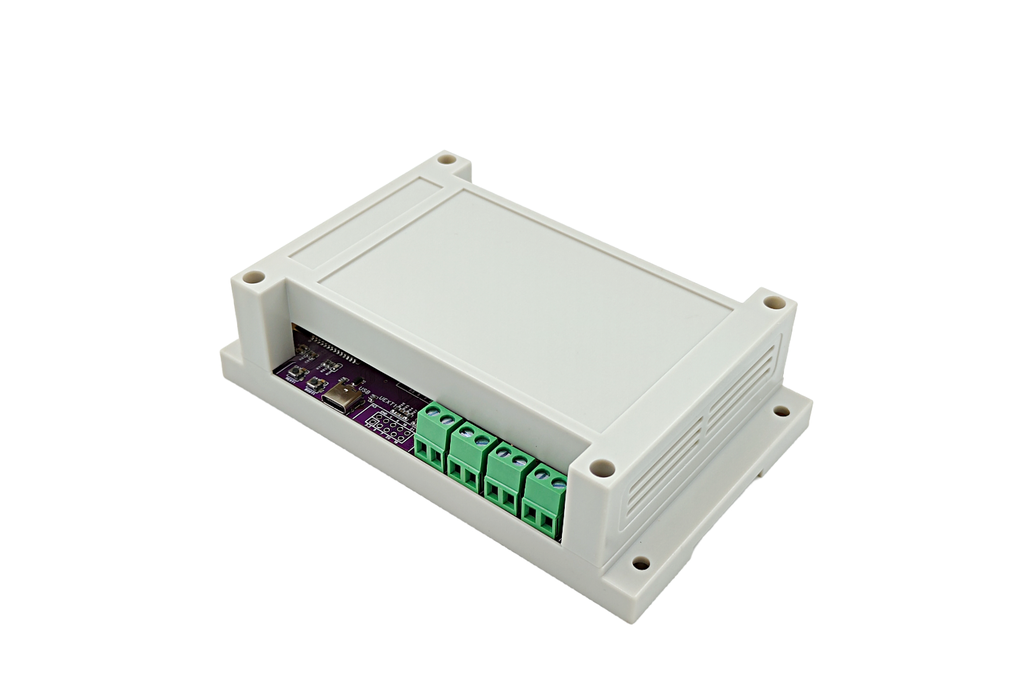

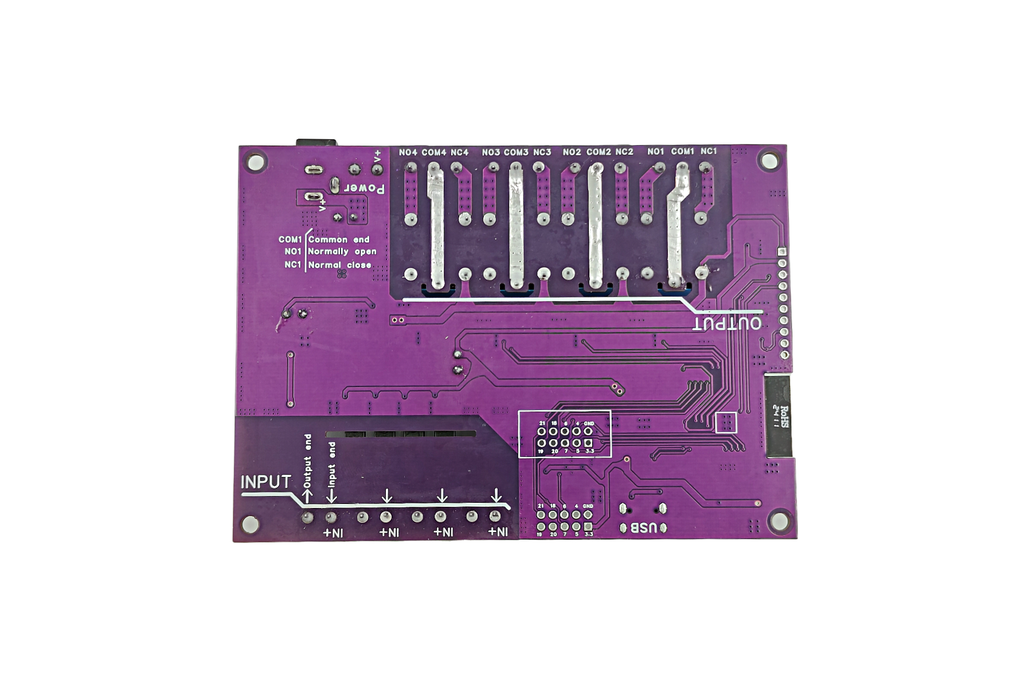

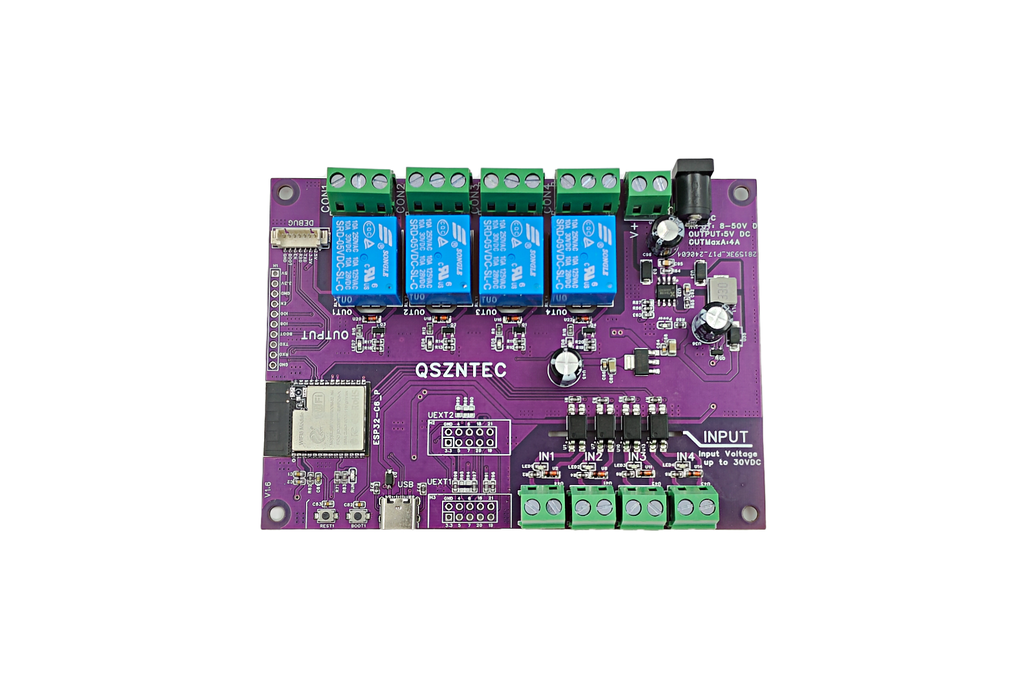

Product Display
